Stainless Steel Profiles

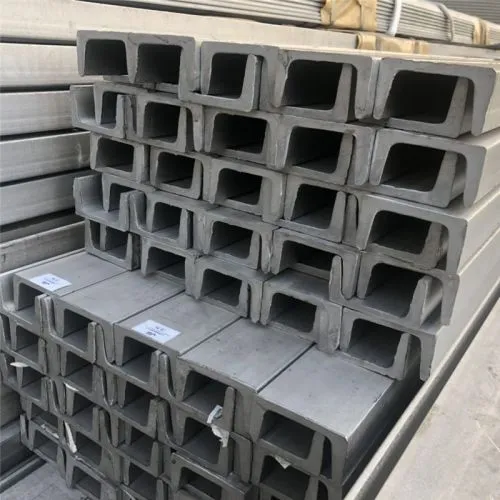

Stainless Steel Channel

Stainless steel profiles are a family of standardized, reliable materials that come in various shapes and sizes, designed for use across a range of manufacturing and construction applications. These profiles are extruded from stainless steel and offer the benefits of high strength, durability, and resistance to corrosion.

Specifications

A. Delivery State: Hot Rolled

· Dimensions:(mm)Thickness:4mm, 5mm, 6mm, 7mm

· Height: 40mm, 50mm, 60mm

· Width:80mm, 100mm, 120mm

B. Delivery State: Welded

· Dimensions:(mm)

· Thickness:3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm

· Height:25mm, 30mm, 40mm, 50mm, 60mm, 70mm, 75mm, 80mm, 100mm

· Width:50mm-245mm

· Main Grade:201(J1 J2 J3 J4) , 304, 316, 316L, 430 (J1 J2 J3), 420, 410, 904L, 2205, 2507 etc.

· Finish:Pickled, Sandblasting

· Tags: U Channel Bar, C Channel Bar

· Standards:ASTM A276, ASTM A484M, DIN 1028, EN 10279, EN 10225, GB 4227

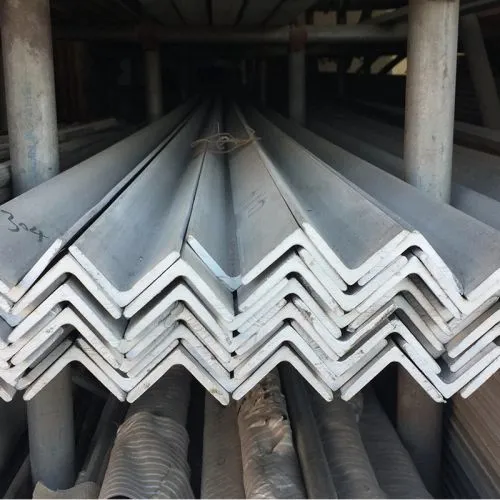

Stainless Steel Angle Bar

Specifications

· Equal Angle Bar Dimensions: (mm)

20x20x3;25x25x3, 25x25x4;30x30x3, 30x30x4, 30x30x5, 30x30x6;40x40x3,

40x40x4, 40x40x5, 40x40x6;50x50x4, 50x50x5, 50x50x6;60x60x5, 60x60x6;

65x65x5, 65x65x6, 65x65x7, 65x65x8;70x70x6, 70x70x7, 70x70x8;

75x75x6, 75x75x7, 75x75x8, 75x75x9;80x80x8, 80x80x9, 80x80x10;

100x100x8, 100x100x9, 100x100x10,100x100x12

· Size 100x100 above until 150x150 can be customized.

· Main Grade:201(J1 J2 J3 J4) , 304, 316, 316L, 430 (J1 J2 J3), 420, 410, 904L, 2205, 2507 etc.

· Hot-Selling Products:

· Stainless Steel Hot Rolled Angle Bar,Stainless Steel Pickled Angle Bar

· Standards:ASTM A276, ASTM A484M, DIN 1028, EN 10056,GB 4227
